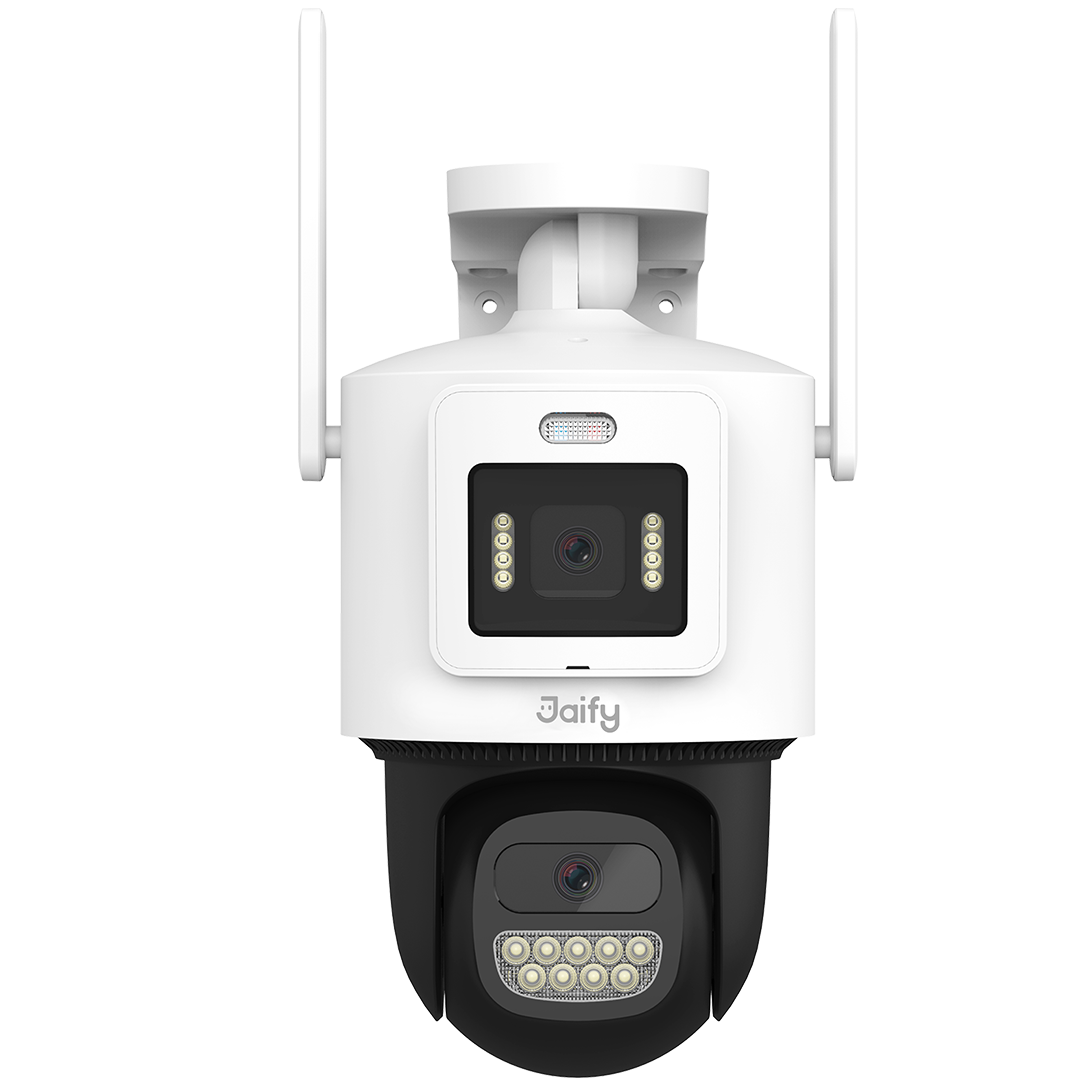

Outdoor Wi-Fi Dual-lens PT Camera
6MP
S2-6WL-D2
Outdoor Wi-Fi Dual-lens PT Camera
Two-way Monitoring
Human Detection
H.265
360° Panoramic
Two-way Monitoring
Human Detection
H.265
360° Panoramic
Function Quick Intro
Everything you need to protect your home safety

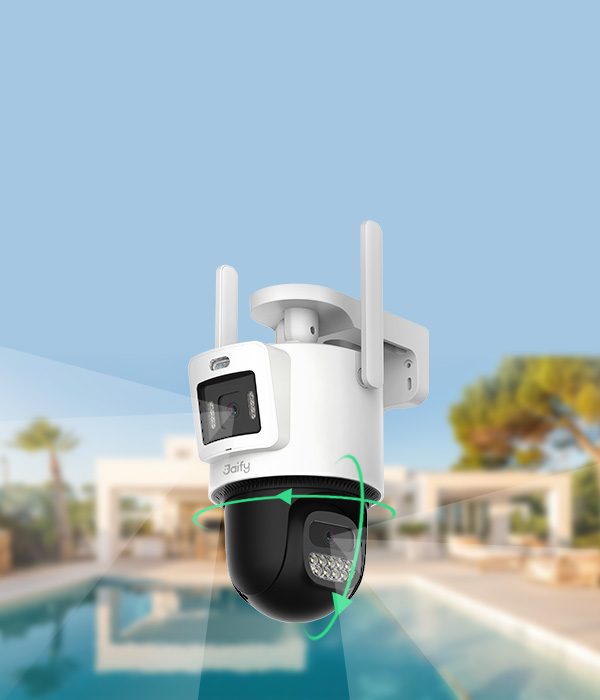

Dual-Camera Surveillance
Fixed lens monitors full scene, PT lens tracks targets. No blind spots, complete protection

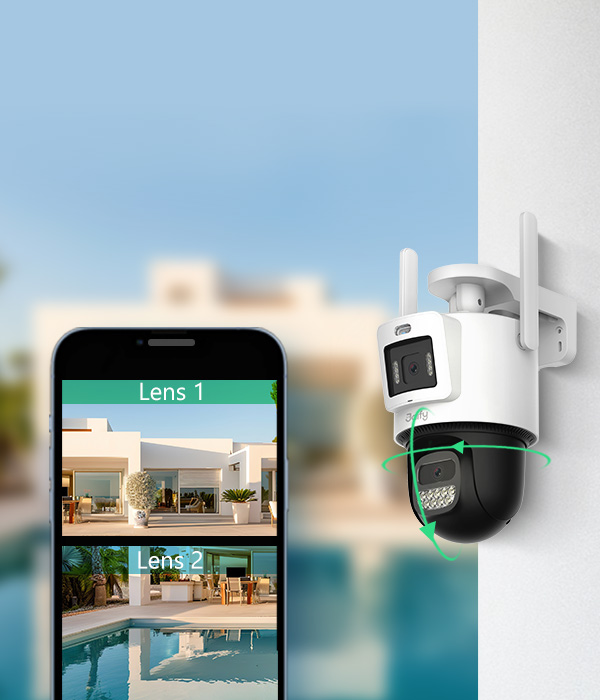

Dual-Screen Monitoring
Sync dual cameras on your app，see the big picture and close-ups simultaneously
Human Detection
AI human detection algorithm for more accurate and effective alerts
Two-Way Audio
Built-in microphone and speaker for seamless two-way talk communication

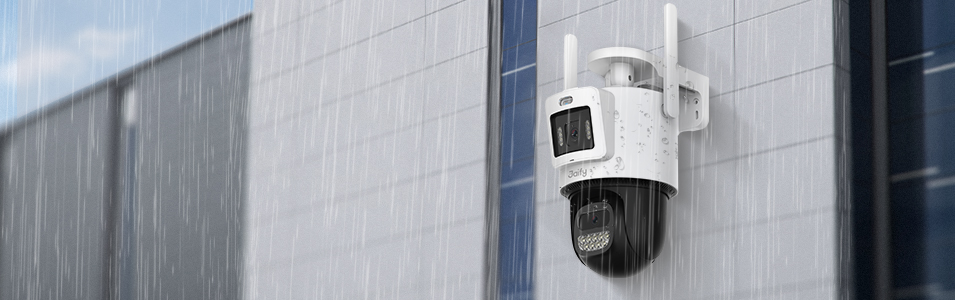

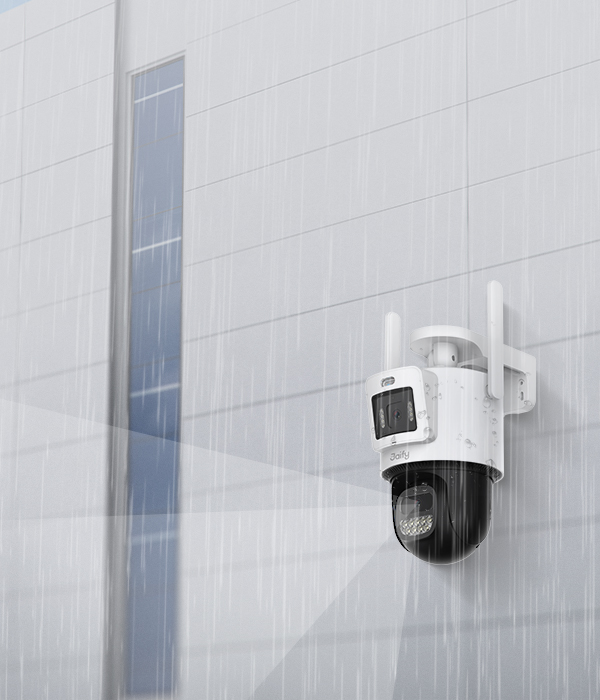

Waterproof and Dustproof
IP66-rated waterproof and dustproof design, easily handling outdoor rain and snow weather
Smart Wi-Fi Camera
Human detection丨Two-way talk
Residential Surveillance
Dual-camera synchronous monitoring with coordinated alerting

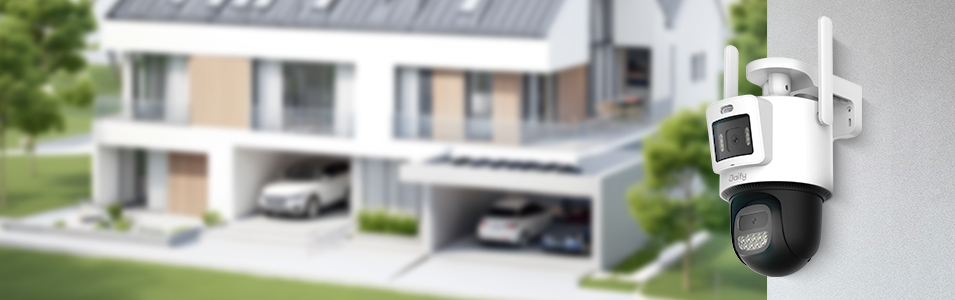

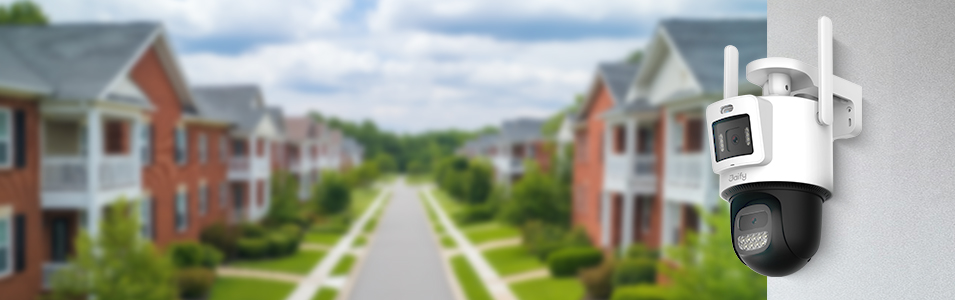

Home Courtyard
Dual-camera protection in a single device，complete 360° safety coverage
Human Detection
AI human detection intelligently filters out false alarms, providing accurate alerts
Waterproof and Dustproof
IP66 waterproof and dustproof, easily handling outdoor rain and snow weather for long-term use
Products Comparison

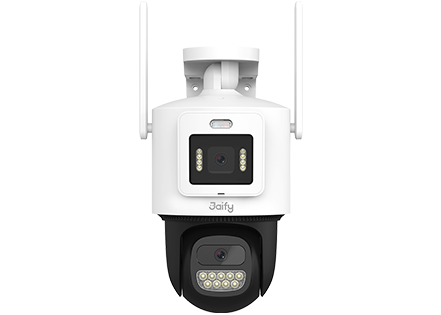

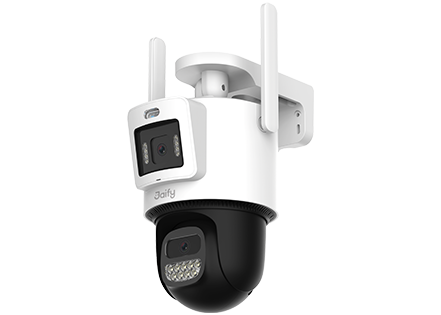

S2-6WL-D2
Sensor: 2*1/2.9" Low illumination Sensor
Lens: 4(±0.3)& 6(±0.3)mm@F1.6
Field of View:
Fixed Lens: Diagonal: 95°, Horizontal: 79°, Vertical: 42°
PT Lens: Diagonal: 60.5°, Horizontal: 50.5°, Vertical: 29°"
Fill Light: 9*850nm IR fill lights&15*white led fill lights
Recording Storage: Local TF card storage; Cloud storage
Voice Intercom: Two-Way Voice Intercom
Max.Resolution: 2304*2592
Frame Rate: 12 FPS
Network Interface: 1*RJ45 (10M / 100M Adaptive Ethernet Port)
Power Interface: 1*DC 12V interface
Power: DC 12V/1A
Night Vision Distance: 30m
Material: ABS, PC
Device Weight: About 788g
Dimensions: About 153mm*208mm*292mm
IP Grade: IP66
Mounting Methods: Wall-mounted、Ceiling-mounted
M2-4GL
像素：4MP
传感器类型：1/3英寸高性能CMOS传感器
镜头：4mm@F2.0
视场角：对角：90°，水平：76°，垂直：41°
补光灯：6颗850nm红外灯
日夜模式：红外夜视
语音对讲：双向语音对讲
录像存储：TF卡存储/云存储
电源输入：DC5V/1A
网络：4G/有线
夜视距离：10米
拾音距离：5米
外壳材质：ABS，PC
重量：约187g
尺寸(mm) ：约117mm*78mm*78mm
防护等级 IP5X
了解更多

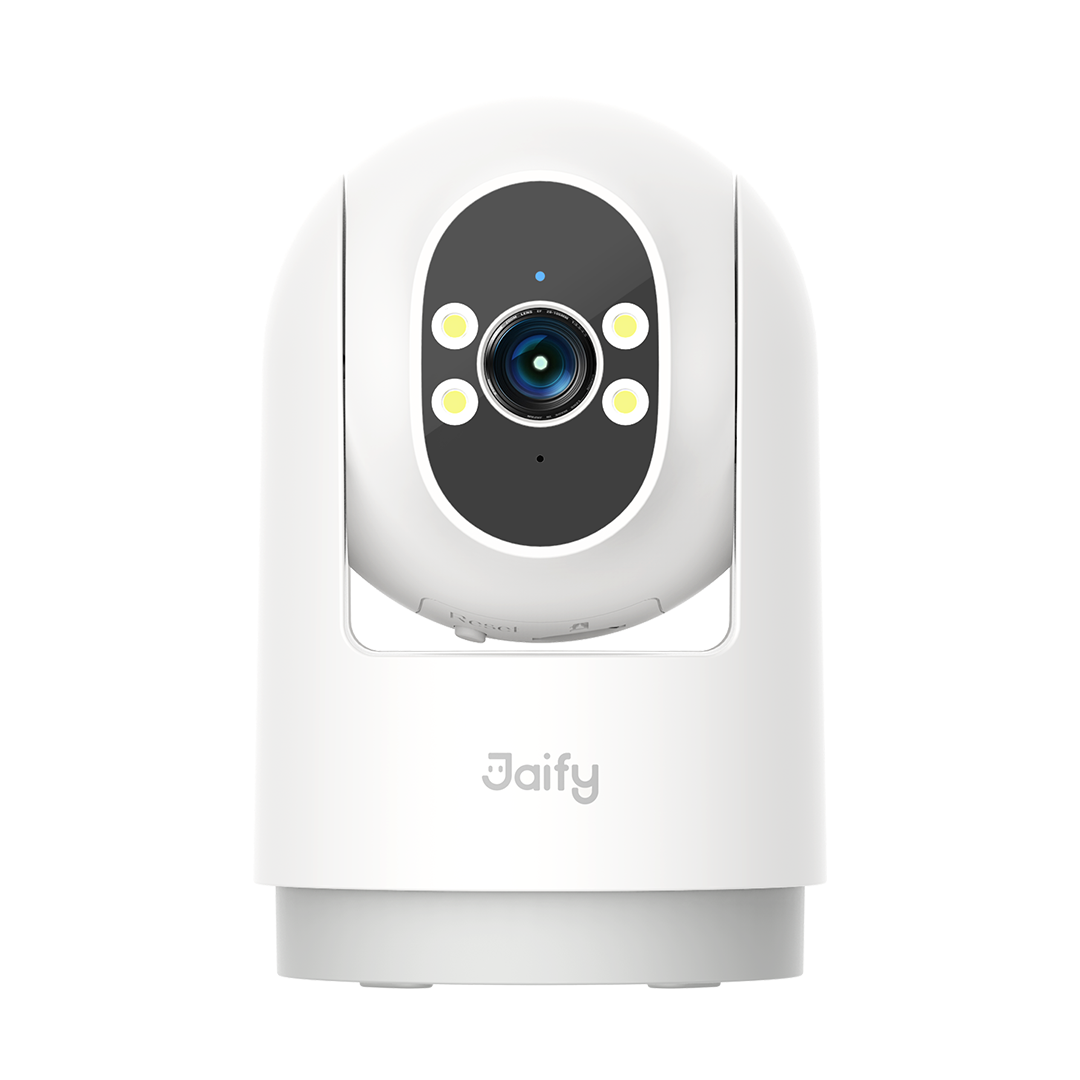

M2-5W
像素：5MP
传感器类型：1/3英寸高性能CMOS传感器
镜头：4mm@F2.0
视场角：对角：97.4°，水平：82.3°，垂直：44.7°
补光灯：6颗850nm红外灯+4颗白光灯
日夜模式：全彩夜视/红外夜视/双光警戒
语音对讲：双向语音对讲
录像存储：TF卡存储/云存储
电源输入：DC5V/1A
网络：Wi-Fi
夜视距离：10米
拾音距离：5米
外壳材质：ABS，PC
重量：约206g
尺寸(mm) ：约115mm*74mm*74mm
防护等级 IP5X
了解更多
Specs

Camera

Resolution: 6MP

Sensor: 2*1/2.9" Low illumination Sensor

Min. Illumination：

Color: 0.1Lux @(F1.6,AGC ON); 0 Lux with IR

B/W: 0.01 Lux @ (F1.6,AGC ON),0 Lux with IR"

Shutter Speed: Self-adaptive shutter

Lens: 4(±0.3)& 6(±0.3)mm@F1.6

Field of View:

Fixed Lens: Diagonal: 95°, Horizontal: 79°, Vertical: 42°

PT Lens: Diagonal: 60.5°, Horizontal: 50.5°, Vertical: 29°

Fill Light: 9*850nm IR fill lights&15*white led fill lights

DNR : 3D DNR

Audio Input: Built-in microphone

Audio Output: Built-in speaker

Night Vision: Supports full-color night vision, infrared night vision, and dual-light alarm

PT Angle: Horizontal 355°, vertical 95°

Recording Storage: Local TF card storage; Cloud storage


Max.Resolution: 2304*2592

Frame Rate: 12 FPS

Buttons & Interfaces

Network Interface: 1*RJ45 (10M / 100M Adaptive Ethernet Port)

Storage Interface: 1*TF card storage interface (max 256GB)

Reset Button: 1*Reset button

Power Interface: 1*DC 12V interface

Compression

Video Standard: H.264/H.265

Audio Standard: G.711a

Network

Protocol：JFTECH cloud proprietary protocol

Interface Protocol：JFTECH cloud proprietary protocol

General Function：Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Wireless Parameters

Wi-Fi Standard: IEEE 802.11b/g/n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

General

Operating Conditions: -10℃ ~ 50℃, Humidity 95% or less (non-condensing)

Power Supply: DC 12V/1A

Night Vision Distance: 30m

Pickup Distance: 5m

Material: ABS, PC

Device Weight: About 788g

Dimensions: About 153mm*208mm*292mm

IP Grade: IP66
